- Place of Origin: Jinan
- Brand Name: Hengchuang
- Model Number: YM6

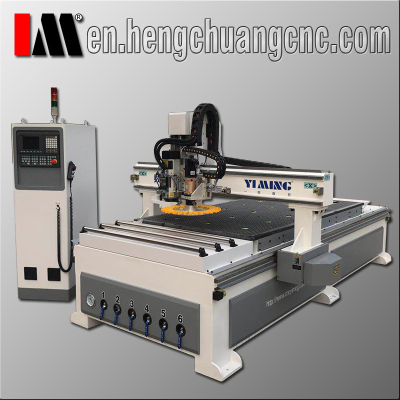

ATC spindle with 8 or more tools for door processing.
Parts | Descriptions | Remarks |
Spindle | HSD 9kw ATC, 24000 RPM, ISO-30 | Italy. Auto Tool Changing |
Tool magazine (carrier) | 8 tool holders | Max 16 for option |
Driving System | YASKAWA Servo Motoreducer gearbox | Japan. , |
Working area | 1300 x 2500 x 200 mm | X×Y×Z |
Transmission | Linear Guide rail Ball screw for Z axis helical racks and gears for X Y | PMI/HIWIN TBI
|
CNC system | SYNTEC 6MB | Taiwan. Supports 4 axis |
Vacuum System | 7.5kw, 250m3/h | Water cycle |
Dust collecting system | Dust collector, 2 bags | With pipes |
Software | ArtCAM Pro 2017, G code | With designing library |
Platform | Vacuum with T-slot | For both vacuum and clamps |
Gantry | Whole casted steel | Little deform after long time using. |
Machine chassis | Steel tubes 8 mm thick | Keep in high accuracy after long time. |
Electronic Components | SIEMENS and Schneider | |
Relocating accuracy | 0.2 mm | Machine accuracy 0.2mm |
Max Moving speed | 45000mm/min | Working speed 25000mm/min |
Working Voltage | AC 380v 50Hz | 3- phase power |
Delivery Date | 30 work days | Including producing and supervision |
