- Place of Origin: Jinan
- Brand Name: Hengchuang
- Model Number: YM6

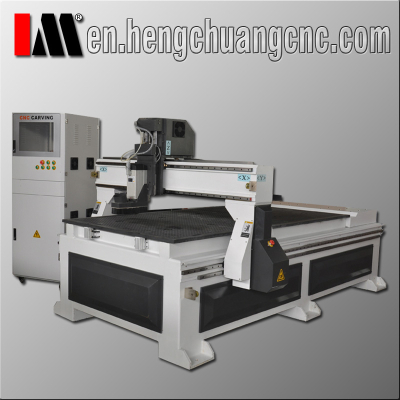

single spindle for cutting only. this is the most simple nesting solution.
Parts | Descriptions | Remarks |
Spindle | 6 kw | Air cooling 18000 RPM, made in China. |
Working area | 1300x2500x200mm | X×Y×Z |
Machine size | 1,850 x 3,050mm | Width x length |
Driving System | YAKO stepper | Best in China |
Transmission | Linear guide rails Ball screw for z axis Helical gear racks for x/y axis | PMI, Taiwan |
Reposition accuracy | 0.02mm | |
XY travel speed | 25000 mm/min | |
Max working peed | 15000 mm/min | |
CNC system | NCstudio PM95A | PC based control system |
Software | ArtCAM Pro, G code | With designing library (Vector/3D relief, etc.) |
Table | Vacuum with T slot, | Capable for both vacuum and clamps |
Gantry | Cast iron | Little deform after long time using. |
Machine frame | Welded steel tube | |
Packing size | 3270*2280*1870 mm | G.W. 2500 kg |
Delivery Date | 20 days | Including producing and inspection |
Additional parts | Vacuum Pump 7.5kw | Water recycle type |
Dust Collector | With long pipes |
