- Place of Origin: Jinan
- Brand Name: Hengchuang
- Model Number: YM4s

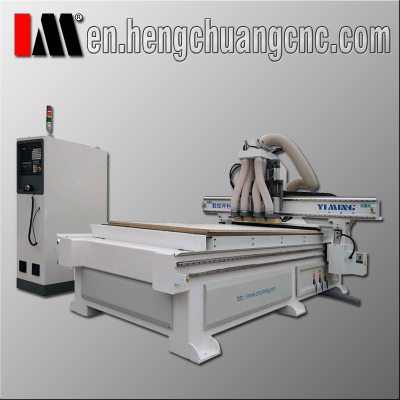

This machine has 4 spindles with cylinder for fast tool changing. One for cutting, the other for drilling or grooving.
This machine is suitble for either cabinet boards or simple doors processsing.
it's a economic solution for various usage.
Parts | Descriptions | Remarks |
Spindle | 4.5kw 6kw 4.5kw 6kw fast switch by cylinder | Air cooling, made in China, fine quality. ER 25, support max tool shank 16mm |
Working area | 1300x2500x200mm | X×Y×Z |
Driving System | Leadshine pure servo Motoreducer gearbox | Made in China. French brand |
Transmission | Linear Guide rail Ball screw for z axis Gear racks for x/y axis | PMI Made in Taiwan TBI Made in Taiwan Helical gear. Better performance |
Processing accuracy | 0.05mm | |
XY travel speed | 32000 mm/min | 0 loading |
Max working speed | 15000 mm/min | With proper loading |
CNC system | NK 260 | Professional control system |
Software | ArtCAM Pro, G code | With designing library (Vector/3D relief, etc.) |
Platform | T slot with Vacuum, Bakelite board | For both vacuum and clamps |
Gantry | Casted steel | Little deform after long time using. Better than Aluminum |
Lathe structure | Melded steel tube | Thickness 8mm |
Accessory | Vacuum Pump: | Used to fix work piece tightly on the platform |
Dust Collect Machine and pipes | Keep your work place clean and you healthy | |
Delivery Date | 30 days |
