- Place of Origin: Jinan
- Brand Name: Hengchuang
- Model Number: YM3

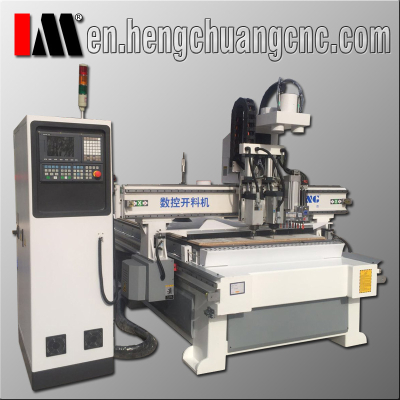

This machine has 2 spindles with cylinder for fast tool changing. one for grooving, the other for cutting.
This machine has a drill bank with 9 drills for differfent sizes of holes. So it can do drilling/boring fast. this increases the speed of cabinet making.
this one is the most fast and economic solution for cabinet boards nesting and cutting.
then you may do the edge banding and side drilling.
Parts | Descriptions | Remarks |
Spindle | 6 kw HSD Italy & 4.5kw HQD China | 6kw for cutting, 4.5kw for grooving. |
Drill bank | 5 4 drills for fast drilling/boring | HQD, full supercharge, best performance |
Inverter (VFD) | DELIXI | |
Driving System | YASKAWA Servo 850w Motoreducer motor reducer | Japan. France, |
Working area | 1300x2500x200mm | X×Y×Z |
Transmission | Linear Guide rail Ball screw for Z axis helical racks and gears for X Y | PMI Taiwan, strong and stable TBI Taiwan,
|
CNC system | SYNTEC 6MB | Taiwan. |
Vacuum System | 7.5kw | Water cycle type |
Dust collecting system | Dust collector, 2 bags | Absorb dust during work |
Software | ArtCAM Pro 2017, G code | With clipart library |
Platform | Vacuum with T-slot | For both vacuum and clamps |
Gantry | Whole casted steel | Little deform after long time using. |
Machine chassis | Steel tubes 8 mm thick | Aging annealing processed. Little deformation after long time use |
Electronic Components | SIEMENS and Schneider | |
Relocating accuracy | 0.2 mm | Machine accuracy 0.2 mm |
Max Moving speed | 100m/min | Working speed 25m/min |
Working Voltage | AC 380v 50Hz | 3- phase power |
Delivery Date | 30 work days |
