- Place of Origin: Jinan
- Brand Name: Hengchuang
- Model Number: YM2

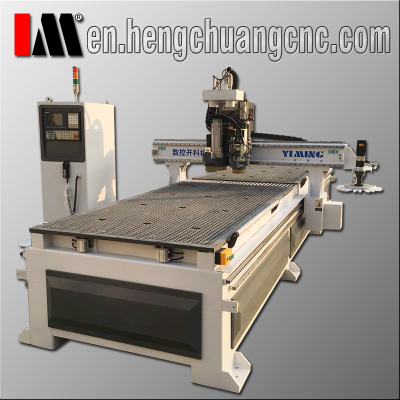

This machine has ATC spindle with 8 or more tool holders. So it can do complex engraving jobs such as door engraving, etc fast and full automatic.
This machine has a drill bank with 9 drills for differfent sizes of holes. So it can do drilling/boring fast. this increases the speed of cabinet making.
So if you want one machine for both cabinet and door processing, this one is a good choice.
Parts | Descriptions | Remarks |
Spindle | HSD 9kw ATC, 24000 RPM, ISO-30 | Italy. Auto Tool Changing |
Tool magazine (carrier) | 8 tool holders | Max 16 for option |
Drill bank | HQD 5 4 vertical drills | Full supercharged |
Inverter | DELIXI | |
Driving System | YASKAWA Servo 850w Motoreducer gear box | Japan. France , |
Working area | 1300 x 2500 x 200 mm | X×Y×Z |
Transmission | Linear Guide rail Ball screw for Z axis helical racks and gears for X Y | PMI/HIWIN TBI
|
CNC system | SYNTEC 6MB | Taiwan. Supports 4 axis |
Vacuum System | 7.5kw, 250m3/h | Water cycle |
Dust collecting system | Dust collector, 2 bags | With pipes |
Software | ArtCAM Pro 2017, G code | With designing library |
Platform | Vacuum | With bigger holes for stronger vacuum |
Gantry | 10mm steel tube welded | Little deform after long time using. |
Machine chassis | Steel tubes 8 mm thick | Aging annealing processed |
Electronic Components | Schneider | |
Relocating accuracy | 0.2 mm | Machine accuracy 0.2mm |
Max Moving speed | 60000mm/min | Working speed 25000mm/min |
Working Voltage | AC 380v 50Hz | 3- phase power |
Delivery Date | 30 work days | Including producing and supervision |
